Khoom Taw Qhia

Peb lub tuam txhab muaj 40kHz Langevin ultrasonic transducer yog tsim los ua kom ruaj khov, siab - tso zis hluav taws xob tseem ceeb rau kev thov siv xws li cov cuab yeej tu tshuab. Tsis zoo li cov qauv me me, nws muaj cov qauv loj loj uas ua rau muaj zog cavitation hnyav, tshem tawm cov kab mob tsis zoo los ntawm cov cuab yeej, qhov chaw, thiab cov khoom siv.

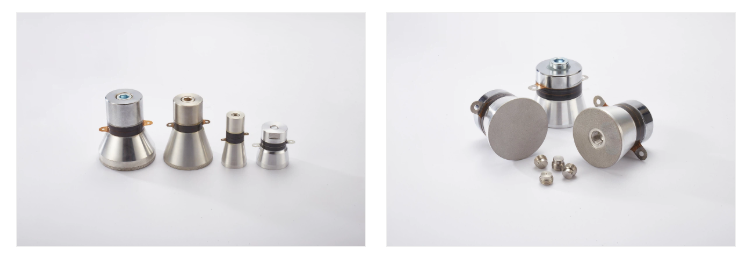

product-756-261

Khoom Parameters

Kev faib tawm	Qauv	Fkev xav tau (KHz)	ReLub impedance (Ω)	Static Capacitance (PF)	Insulation Resistance (MΩ)	Ptus tswv (W)
Ultrasonic Ntxuav Series	Q120W-20K	20±1	Tsawg dua los yog sib npaug li 20	4800±10%	Ntau dua los yog sib npaug rau 100	120W
	Q100W-28K/40K	28±/40±1	Tsawg dua los yog sib npaug li 20	8000±10%	Ntau dua los yog sib npaug rau 100	100W
	Q80W-28K/40K	28±/40±1	Tsawg dua los yog sib npaug li 20	7000±10%	Ntau dua los yog sib npaug rau 100	80W
	Q60W-28K/40K	28±/40±1	Tsawg dua los yog sib npaug li 20	5000±10%	Ntau dua los yog sib npaug rau 100	60W
	Q60W-68K	68±1	Tsawg dua los yog sib npaug li 20	3800±10%	Ntau dua los yog sib npaug rau 100	60W
	Q60W-120K	120±1	Tsawg dua los yog sib npaug li 20	3800±10%	Ntau dua los yog sib npaug rau 100	60W
	Q50W-40K	40±1	Tsawg dua los yog sib npaug li 20	4000±10%	Ntau dua los yog sib npaug rau 100	50W
	Q40W-40K	40±1	Tsawg dua los yog sib npaug li 30	3000±10%	Ntau dua los yog sib npaug rau 100	40W
	Q30W-40K	40±1	Tsawg dua los yog sib npaug li 30	1800±10%	Ntau dua los yog sib npaug rau 100	30W
	Q15W-50K	50±1	Tsawg dua los yog sib npaug li 100	1100±10%	Ntau dua los yog sib npaug rau 100	15W
Ultrasonic Kho mob thiab Kev Zoo Nkauj Series	M50W-80D	40±1	Tsawg dua los yog sib npaug li 20	4000±10%	Ntau dua los yog sib npaug rau 100	50W
	M50W-60D M15W-63D	35±1 1000±50	Tsawg dua los yog sib npaug li 20 Tsawg dua los yog sib npaug li 20	4000±10% 3500±10%	Ntau dua los yog sib npaug rau 100	50W 15W
	M30W-40K	40±1	Tsawg dua los yog sib npaug li 20	2200±10%		30W
	M15W-40D	3000±100	Tsawg dua los yog sib npaug li 20	5000±10%		15W
Ultrasonic Vuam Series / Emulsifying Series	H3000W-15K	14.9±0.1	Tsawg dua los yog sib npaug li 20	13500±10%	Ntau dua lossis sib npaug li 5000	3000W
	H2000W-20K	19.9±0.1	Tsawg dua los yog sib npaug li 20	10000±10%	Ntau dua lossis sib npaug li 5000	2000W
	H800W-28K	27.8±0.2	Tsawg dua los yog sib npaug li 20	1600±10%	Ntau dua lossis sib npaug li 5000	800W
	H500W-35K	34.8±0.2	Tsawg dua los yog sib npaug li 20	3000±10%	Ntau dua lossis sib npaug li 5000	500W
	R80W-20K	20±1	Tsawg dua los yog sib npaug li 20	4200±10%	Ntau dua lossis sib npaug li 5000	80W

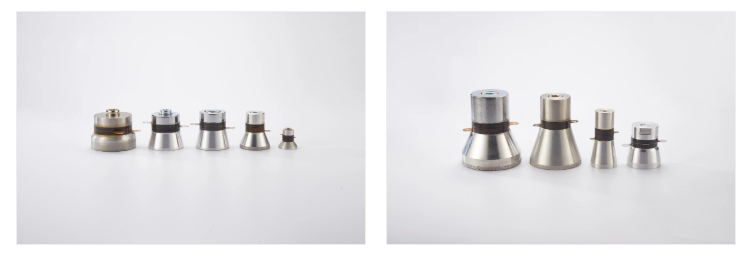

product-751-258

FAQ

Q: Lub zog siab tshaj plaws ntawm kev lag luam ultrasonic transducer yog dab tsi?

A: Lub zog siab tshaj plaws ntawm kev lag luam ultrasonic transducers nyob ntawm ntau yam xws li zaus, qhov loj me, thiab daim ntawv thov. Txawm li cas los xij, feem ntau hais lus, kev lag luam ultrasonic transducers tuaj yeem xa cov zis hluav taws xob siab nyob rau hauv ntau ntawm ob peb kilowatts mus txog kaum tawm kilowatts.
Cov transducers muaj zog no yog siv rau hauv ntau yam kev lag luam, xws li vuam, txiav, tu, thiab sonochemistry. Lawv muaj txiaj ntsig zoo hauv kev hloov hluav taws xob hluav taws xob rau hauv cov tshuab kev vibrations, uas tuaj yeem siv los ua haujlwm meej thiab ceev ceev.
Tsis tas li ntawd, kev txhim kho thev naus laus zis tau coj mus rau kev txhim kho ntawm ntau lub zog thiab ua tau zoo ultrasonic transducers uas tuaj yeem ua haujlwm ntawm ntau zaus thiab xa ntau lub zog. Qhov no tau qhib txoj hauv kev tshiab rau cov ntawv thov kev lag luam uas xav tau cov khoom siv hluav taws xob siab thiab kev tswj xyuas meej.
Zuag qhia tag nrho, lub zog siab tshaj plaws ntawm kev lag luam ultrasonic transducers yog hloov zuj zus mus tas li, thiab nrog cov kev tsim kho tshiab, peb tuaj yeem tos ntsoov rau qhov muaj zog dua thiab muaj txiaj ntsig transducers yav tom ntej.

Q: Muaj pes tsawg hom ultrasonic transducer?

A: Muaj ntau ntau hom ultrasonic transducers uas tau tsim thiab siv rau ntau yam kev siv. Qee yam ntawm cov no muaj xws li piezoelectric transducers, capacitive transducers, magnetostrictive transducers, thiab acoustic lo ntsiab muag.
Piezoelectric transducers yog ib qho ntawm feem ntau siv hom ultrasonic transducers. Lawv ua haujlwm los ntawm kev hloov hluav taws xob hluav taws xob rau hauv cov tshuab kev vibrations los ntawm kev siv cov ntaub ntawv piezoelectric, xws li quartz lossis lead zirconate titanate (PZT).
Capacitive transducers ua haujlwm los ntawm kev ntsuas cov kev hloov pauv hauv lub peev xwm raws li qhov tshwm sim ntawm kev siv dag zog los yog siab. Cov hom kev hloov pauv no feem ntau siv rau hauv cov khoom siv xws li lub siab sensors thiab accelerometers.
Magnetostrictive transducers siv cov nyhuv magnetostrictive los tsim ultrasonic tsis. Lawv feem ntau siv rau hauv cov ntawv thov uas tsis yog -kev kuaj kev puas tsuaj, vim lawv muaj qhov tseeb thiab tuaj yeem nkag mus tob rau hauv cov khoom siv.
Acoustic lo ntsiab muag ua haujlwm los ntawm kev tsom mus rau ultrasound tsis mus rau qhov tshwj xeeb. Lawv feem ntau siv rau hauv kev kho mob cov duab thiab cov ntawv thov kev lag luam, xws li ntxuav thiab txiav.
Zuag qhia tag nrho, txoj kev loj hlob ntawm ntau hom ultrasonic transducers tau nthuav dav ntau ntawm cov ntawv thov rau kev siv tshuab ultrasonic, ua rau nws yog ib qho cuab yeej tseem ceeb hauv ntau qhov chaw sib txawv.

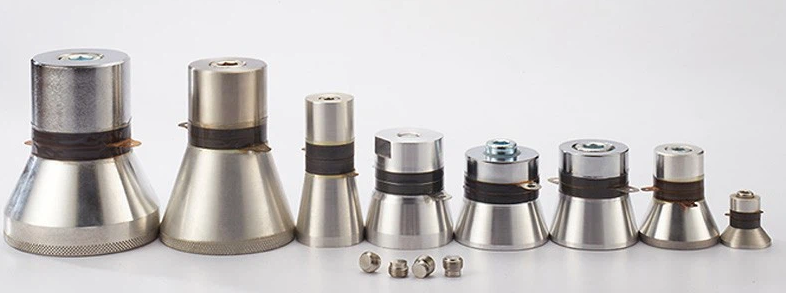

product-786-293
