DIY ultrasonic qhov chaw ntxhua khaub ncaws muaj plaub yam tseem ceeb thiab ob peb lub koom haum pabcuam, uas tuaj yeem yuav los ntawm cov kws tshaj lij. Txawm li cas los xij, kev sib piv thiab cov txheej txheem kev teeb tsa yog qhov tseem ceeb hurdles, uas ncaj qha txiav txim siab qhov zoo thiab lub neej ntawm lub tshuab nqus tsev ultrasonic. Thiab hauv qab no yog cov npe:

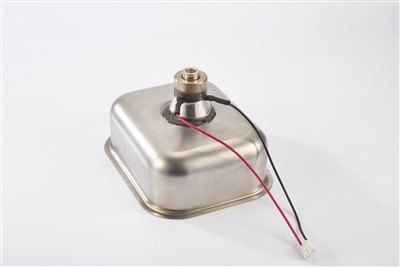

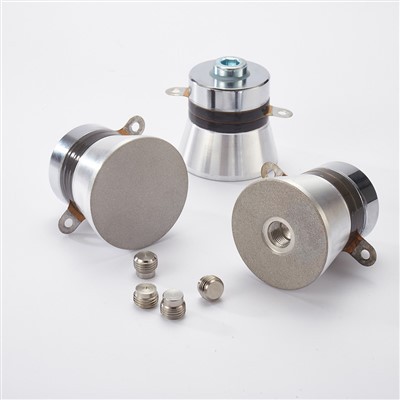

1. Piezo ultrasonic tu transducer: Ultrasonic tu transducer yog lub plawv ntawm DIY ultrasonic nqus tsev vacuum, uas yog converting lub zog hluav taws xob mus rau siab - zaus mechanical vibration. Thiab qhov ntawd yog vim li cas thiaj li muaj cov nyhuv cavitation. Feem ntau 40 kHz 60 W qhaub cij- hom ultrasonic transducer yog siv ntse hauv kev lag luam vim nws yooj yim ntawm kev sib dhos. Thiab qhov kawg siv tuaj yeem txiav txim siab pes tsawg daim yuav tsum tau nruab raws li lub peev xwm ntawm ultrasonic tu tank.

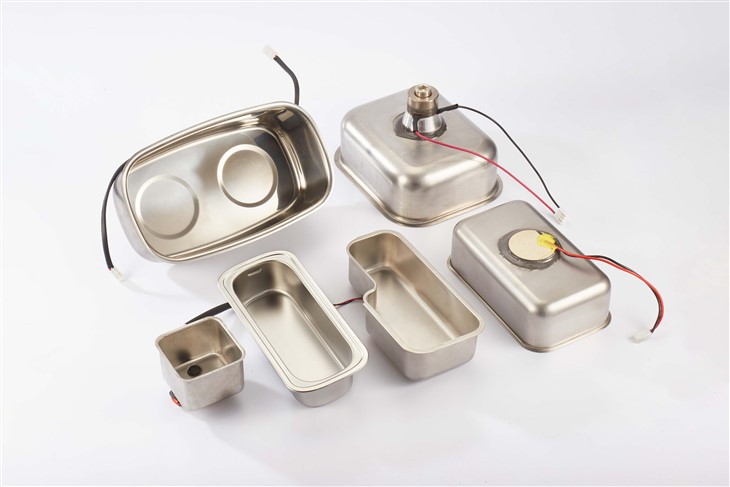

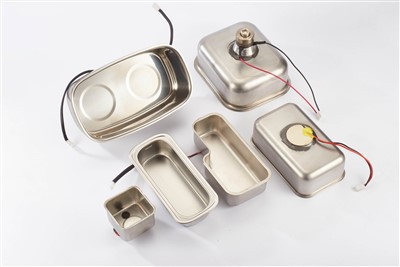

2. Ultrasonic tu tank: ultrasonic tu tank ua hauj lwm raws li kev vibration kis xov xwm, uas yog ua los ntawm SUS304. Nws cov khoom yog qhov zoo tshaj plaws los txhim kho lub ultrasound, uas ua rau kev co kis tau tus mob efficiency thiab tu uniformity.
3. Ultrasonic generator: Lub tshuab hluav taws xob ultrasonic yog lub chaw fais fab rau lub tshuab nqus tsev ultrasonic, uas muab cov khoom siv hluav taws xob AC rau lub tshuab hluav taws xob ultrasonic. Nws tswj cov ultrasonic zaus thiab lub zog tso zis, uas txiav txim siab qhov kev ua haujlwm ultrasonic thiab kev ruaj ntseg. Qhov tseem ceeb tshaj plaws, lub tshuab hluav taws xob ultrasonic yuav tsum phim cov ultrasonic transducer kom zoo.
(II) Ultrasonic Transducer Bonding: Lub hauv paus ntawm cov txheej txheem
Lub ultrasonic transducer bonded rau hauv qab los yog sab phab ntsa ntawm lub ultrasonic tu tank yog cov txheej txheem tseem ceeb tshaj plaws thaum lub rooj sib txoos. Qhov zoo ntawm kev sib txuas txiav txim siab qhov zoo ntawm ultrasonic nqus tsev vacuum; Qhov tsis ua haujlwm ntawm kev sib txuas yuav ua rau kev ua haujlwm tsis zoo ntawm ultrasonic tu, thiab lub neej ntev ntawm lub tshuab ntxuav ultrasonic, xws li ultrasonic transducer, yuav raug tshem tawm ntawm lub tank tu ultrasonic. Kuv lub tuam txhab muaj cov txheej txheem hauv qab no rau kev sib txuas:
1. Bonding txoj hauj lwm thiab kev faib tawm: peb yuav txiav txim siab txoj hauj lwm los ntawm kev txiav txim lub peev xwm ntawm ultrasonic tu tank. Feem ntau yuav muaj ib qho ultrasonic transducer yog tias lub peev xwm tsawg dua 2L, thiab txoj haujlwm yuav yog qhov nruab nrab ntawm lub tank, uas yuav ua kom muaj kev vibration npog tag nrho hauv qab ntawm lub tank. Yog tias lub peev xwm loj dua, peb yuav nruab ntau cov transducers kom ntseeg tau tias kev sib kis ultrasonic. Lub hauv paus ntsiab lus yog tias qhov kev muab -centre boding los yog kev faib tsis sib luag yuav ua rau muaj kev cuam tshuam ntau dhau hauv zos cavitation (kev puas tsuaj) lossis hauv cheeb tsam tsis muaj kev co (kev tu tsis zoo)
2. Adhesive xaiv thiab siv: Peb siv lub siab -kub- ua hauj thiab waterproof epoxy resin AB kua nplaum uas muaj zog heev adhesion. Cov kua nplaum siv rau qhov sib txuas ntawm qhov chaw yuav tsum ua raws li cov thickness tswj ntawm 0.5-1 hli tsis muaj cua npuas, thiab cov transducer yuav tsum tau txuas rau hauv qab ntawm lub tank kom tshem tawm cov cua seem.
3. Kev kho thiab tom qab- kev kho mob: Lub tank sib txuas ultrasonic tu yuav tsum sawv ntsug li 24 teev kom ua tiav cov nplaum ua kom tiav. Thiab lub transducer yuav tsum tsis txhob txav los yog kov thaum kho, los yog nws yuav ua rau misalignment. Txawm tias ultrasonic tu tank yuav tsum tau qhwv nrog waterproof sealant los tiv thaiv dej ingress thiab luv circuits.
Cov txheej txheem kev sib txuas yog qhov nyuaj heev rau koj los tswj; muaj qee qhov tsis xws luag yuav tshwm sim, xws li cov nplaum sib xyaw tsis zoo thiab cov npuas cua seem. Tag nrho cov no ua rau lub ultrasonic detachment thaum lub sij hawm ua hauj lwm, xws li siab vibration kis tau tus mob, txawm transducer burnout vim lub uneven kev nyuaj siab hauv zos.
Khoom Specification
|
Kev faib tawm |
Qauv |
Fkev xav tau (KHz) |
ReLub impedance (Ω) |
Static Capacitance (PF) |
Insulation Resistance (MΩ) |
Ptus tswv (W) |
|
Ultrasonic Ntxuav Series |
Q120W-20K |
20±1 |
Tsawg dua los yog sib npaug li 20 |
4800±10% |
Ntau dua los yog sib npaug rau 100 |
120W |
|
Q100W-28K/40K |
28±/40±1 |
Tsawg dua los yog sib npaug li 20 |
8000±10% |
Ntau dua los yog sib npaug rau 100 |
100W |
|
|
Q80W-28K/40K |
28±/40±1 |
Tsawg dua los yog sib npaug li 20 |
7000±10% |
Ntau dua los yog sib npaug rau 100 |
80W |
|
|
Q60W-28K/40K |
28±/40±1 |
Tsawg dua los yog sib npaug li 20 |
5000±10% |
Ntau dua los yog sib npaug rau 100 |
60W |
|
|
Q60W-68K |
68±1 |
Tsawg dua los yog sib npaug li 20 |
3800±10% |
Ntau dua los yog sib npaug rau 100 |
60W |
|
|
Q60W-120K |
120±1 |
Tsawg dua los yog sib npaug li 20 |
3800±10% |
Ntau dua los yog sib npaug rau 100 |
60W |
|
|
Q50W-40K |
40±1 |
Tsawg dua los yog sib npaug li 20 |
4000±10% |
Ntau dua los yog sib npaug rau 100 |
50W |
|
|
Q40W-40K |
40±1 |
Tsawg dua los yog sib npaug li 30 |
3000±10% |
Ntau dua los yog sib npaug rau 100 |
40W |
|
|
Q30W-40K |
40±1 |
Tsawg dua los yog sib npaug li 30 |
1800±10% |
Ntau dua los yog sib npaug rau 100 |
30W |
|
|
Q15W-50K |
50±1 |
Tsawg dua los yog sib npaug li 100 |
1100±10% |
Ntau dua los yog sib npaug rau 100 |
15W |
Kev pabcuam OEM / ODM
Peb lub tuam txhab tsis tsuas yog muab cov khoom siv zoo tshaj - cov khoom siv zoo rau cov neeg nyiam DIY tab sis kuj muaj ib qho - nres OEM / ODM kev pabcuam rau cov neeg yuav khoom. Peb tuaj yeem muab koj nrog cov txheej txheem tseem ceeb ntawm cov khoom siv thiab cov kev daws teeb meem raws li koj xav tau.
Peb cov core Cheebtsam ntau lawm system enables peb muab nplua nuj core Cheebtsam:
Piezoelectric ceramic: Ntau qhov ntau thiab tsawg thiab kev cai ultrasonic zaus.

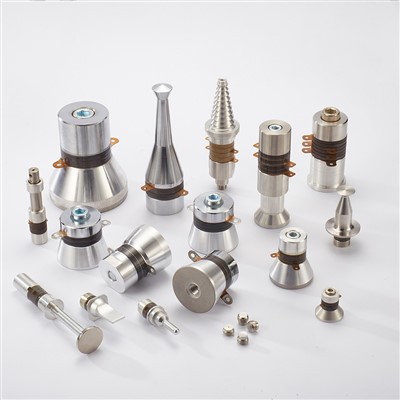

Ultrasonic transducer: Ntau hom Ultrasonic transducer; kev cai Ultrasonic zaus
Ultrasonic tu tank: sib txawv muaj peev xwm ntawm ultrasonic tu tank. (Los ntawm 300 ml mus rau loj 100 L +)
Tag nrho cov khoom tau dhau los ua qhov siab -kev ntsuas kev ua tau zoo thiab kev tswj xyuas zoo.
Peb pab pawg kws tshaj lij muaj kev txhawb nqa tag nrho rau peb cov neeg siv khoom los ntawm kev daws teeb meem ntau yam kev sib tw hauv kev tsim, ua tiav ib qho - nres kev daws teeb meem rau peb cov neeg yuav khoom.
Tsis yog peb tsuas yog muab cov khoom zoo siab - cov khoom siv zoo, tab sis peb kuj tseem muab cov kev pabcuam kev tshaj lij thoob plaws tag nrho cov txheej txheem.
Rau siab -cov neeg siv khoom ntim ntau lawm, peb muab cov qauv tseem ceeb hauv cov khoom sib xyaw ua ke nrog cov ncauj lus kom ntxaws cov ntaub ntawv qhia kom paub tseeb tias kev sib dhos ua tau zoo thiab tsim nyog tsim nyog.
Rau cov neeg siv khoom kev cai, peb muab cov kws txiav plaub hau - ua cov ntsiab lus tshwj xeeb, xws li ultrasonic tu tank modules thiab fais fab mov modules, raws li tus neeg yuav khoom xav tau.
FAQ
Q: Qhov loj npaum li cas ultrasonic transducer kuv xav tau rau lub tshuab nqus tsev DIY?
A: Feem ntau, Sandwish hom ultrasonic transducer yog siv ntse hauv DIY ultrasonic qhov chaw ntxhua khaub ncaws, tab sis qhov loj ntawm ultrasonic transducer txiav txim siab los ntawm lub peev xwm ntawm ultrasonic tu tank. Qhov loj dua lub zog loj yuav yog. Yog li nws yuav tsum tau saib mus rau hauv qhov tseeb lub peev xwm ntawm ultrasonic qhov chaw ntxhua khaub ncaws.
Q: Dab tsi zaus yog qhov zoo tshaj plaws rau DIY ultrasonic qhov chaw ntxhua khaub ncaws (28kHz vs 40kHz)?
A: Raws li peb paub, lub hauv paus ntsiab lus ua haujlwm ntawm kev tu ultrasonic yog ua los ntawm cov nyhuv cavitation. Qhov sib txawv ntawm 28KHz thiab 40KHz yog qhov loj ntawm cov npuas, 28KHz yuav muaj cov npuas loj dua thiab cov txheeb ze ntawm qhov kev poob siab yog muaj zog dua, tab sis qhov tsis zoo yog tias nws tsis tuaj yeem ntxuav cov khoom muag, lossis nws yuav ua rau cov khoom puas.
Q: Lub tank hom twg yog qhov tsim nyog rau DIY ultrasonic qhov chaw ntxhua khaub ncaws (stainless hlau vs yas)?
Q: Thaj, SUS304 Ultrasonic tu lub tank yog tsim rau DIY ultrasonic qhov chaw ntxhua khaub ncaws, uas yog vim nws cov khoom muaj zog tiv thaiv -corrosion, lub caij no nws muaj zog toughness uas tuaj yeem cuam tshuam cov ultrasonic tsis los txhim kho cov nyhuv tu.
Cim npe nrov: Tuam Tshoj diy ultrasonic qhov chaw nqus tsev vacuum manufacturers, lwm tus neeg, Hoobkas
